High Temperature Insulation Heat Treatment Thermal Insulating Fireproof Ceramic Fiber Refractory Module for Furnace

Place of Origin : Zibo, China

Brand Name : Laurel

Certification : ISO9001

Model Number : Laurel-02-03

MOQ : 3 ton

Packaging Details : Carton box

Delivery Time : 10~15 days

Payment Terms : T/T;L/C

Supply Ability : 500 ton/month

Color : White

Temperature Resistant : 190 degree C

Feature : Heat insulation and sound absorption

Thickness : 1/4 inch

Furnace Size : 200x300x500

Port : Shenzhen

Usage : Glass industry

Features : Low thermal conductivity, high temperature resistance, lightweight

Temperature Range : above 1650º C

Power : Electronic

Weight : 450gsm- 550 gsm

Materials : Quality Steel Core with good balance

Fiber : 100% PTFE needle felt

Highest Temperature : 1000℃,1200℃

Working temperature : 1000-1350

Fiber diameter : 3-5um

Grade : HA (High Aluminum),COM (Common),HP (High Pure),1260STD,COm/HA/HP/HZ

Chemical composition : AL2O3+SIO2

Application : Liners Of Industrial Furnace,Refractory,Heat Insulation,Refractory Furnace Lining,industry kiln stove

Ultimate strength (≥ mpa) : 0.08-0.12Mpa

Thermal conductivity : 0.055-0.180(W.k.m.)

Product name : refractory ceramic fiber product for sale

Raw material : Alumina Silicate

Package : Carton,Customers Requested

Feature 1 : Excellent Insulating Performance,Low Thermal Conductivity,Double Needle-punching,low heat storage

Type : Insulation Fireproof Material Fireplace,1100C/1260C/1420C/1600C,1260ST,Thermal Insulation Material,1050COM

Application of ceramic fiber blanket : Refractory Furnace Lining,Heat Insulation

Contact Now

Heat Treatment Ceramic Fiber Refractory , High Temperature Insulation Board

High Temperature Insulation Heat Treatment Thermal Insulating Fireproof Ceramic Fiber Refractory Module for Furnace

Description:

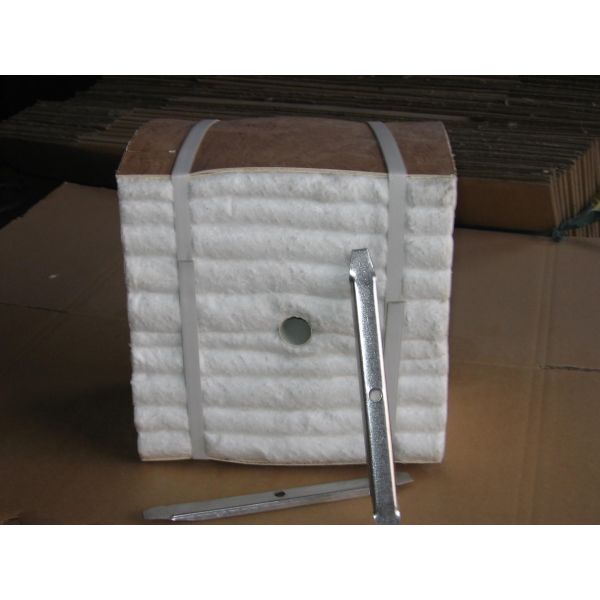

Laurel ceramic fiber modules are high-temperature insulation products made from ceramic fiber blankets. They are designed to be installed in high-temperature furnaces, kilns, and other industrial equipment to improve energy efficiency while reducing maintenance costs. The modules come in standard sizes and shapes, making them easy to install and replace. They have excellent thermal stability and resistance to harsh chemicals, as well as low thermal conductivity, which helps to minimize heat loss.

Module linings prevent heat loss,increasing the furnace productivity and reducing maintenance costs.

Laurel modules have the highest insulating value achievable in a ceamic fiber.Each module is a continuous folded blanket under compression.The individual sheetsis allowed.

Features

  1. Fast and easy installation
  2. Lower heat storage and fuel costs
  3. This design creates a very ligh lining,less steel required
  4. Several anchor systems
  5. Fast and easy installation
  6. Lower heat storage and fuel costs
  7. This design creates a very ligh lining,less steel required
  8. Several anchor systems

High Temperature Insulation Heat Treatment Thermal Insulating Fireproof Ceramic Fiber Refractory Module for Furnace

Applications:

Ceramic industry

  1. Low mass kiln cars
  2. Continuous and batch kilns
  3. Door linings
  4. Glazing,porcelain furnace linings

Power generation

  1. Duct lining
  2. Heat recovery steam system
  3. Boiler insulation
  4. Stack linings

Refining and petrochemical

  1. Ethylene furnace roof and walls
  2. Pyrolysis furnace lining
  3. Reformer furnace roof and walls
  4. Boiler linings

Steel industry

  1. Ladle pre-heaters and covers
  2. Heat treat furnace
  3. Soaking pit covers and seals
  4. Heaters and reformer lining

Others

  1. Incineration equipment
  2. Burner blocks
  3. Induction furnace covers
  4. Glass tempering furnace.

Specifications:

Technical data

Item

Common

Standard

H Pure

H Alumina

Zirconium

AL2O3(%)

44

46

47-50

52-55

39-40

Fe2O3(%)

1.2

1.0

0.2

0.2

0.2

ZrO2(%)

－

－

－

－

15-19

Classification Temperature (℃)

1100

1260

1260

1360

1430

Working Temperature (℃)

1000

1050

1100

1200

1350

Density (kg/m3)

220±15

220±15

220±15

220±15

220±15

Permanent linear shrinkage(%)(after24 hours,density 128kg/m3)

-4
(1000°C)

-3
(1000°C)

-3
(1100°C)

-3
(1250°C)

-3
(1350°C)

Competitive Advantage:

1.Best price, make the products competitive in your market

2.Abundant Experience.

3.Strict Quality Control. Meet clients'quality requirement.

4.Large stocks. Guarantee prompt delivery.

5.Professional Packing. Avoid damage and secure the goods in transportation
